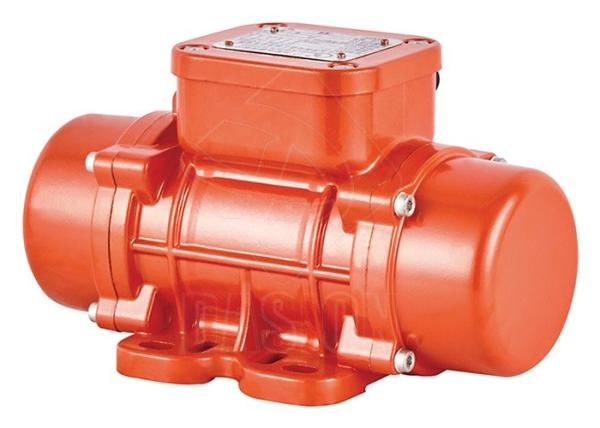

Industry Vibratory Electric Motor Vibrator Aluminum Shell For Aggregate Batcher

Product Categories

HENAN DASION MACHINERY CO.,LTD

Contact Now

Industry Vibratory Electric Motor Vibrator Aluminum Shell For Aggregate Batcher

Name: Industry Vibratory Electric Motor Vibrator Aluminum Shell For Aggregate Batcher
Brand: DASION
Price: 1 USD

Brand Name : DASION

Model Number : MV60/3

Certification : CE&ISO

Place of Origin : Henan Province, China

MOQ : 1 set

Price : EXW USD 37.5-126.5 per set

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000 sets per month

Delivery Time : 5-8 working days

Packaging Details : Wooden cases for electrical motor vibrators

Product name : Concrete industry vibratory electric motor vibrator for aggregate batcher

Force : 0.7KN

Power : 0.07kw

Weight : 4.2kg

Installation size : 62-74, 106

Color : Red or your required

Material : Aluminum shell

Contact Now

Concrete industry vibratory electric motor vibrator for aggregate batcher

Vibrating Motors Description

Providing from 20 to 26,000 kg of centrifugal force with 2, 4, 6 or 8 poles, the standard range of MVE External Electric Motovibrators is suitable for all kinds of vibrating equipment virtually in all industries. The motovibrators come with single phase, tree-phase or DC motor with ATEX ExII3D and ETL, Class II, Division 2 certification for application in the presence of potentially flammable dusts in hazardous environments.

Vibrating Motors Application

The motor vibrators are used to consolidate cement and remove all the trapped air bubbles to give you the toughest cement possible, widely used in construction, transportation, water conservancy, port, mine and metallurgy, etc.

Meanwhile, it was machine vibrator, used to move and filter materials, pills, foods in chmcal, mdeicine, foundry, food and other industires, etc.

Main Features

1. No power limit, easy to move.
2. Lightweight and easy to use.

3. Eccentric block can be adjusted.

4. High efficiency, time and energy saving.

5. Aluminium alloy body, fine baking paint, strong and not easy to bend.

6. F Insulation class, enhance safety during work.

7. IP65 Protection class, water proof, anti dust, suit for hard condition outdoor works.

8. Primium craftsmanship and good details, quality assurance.

Adjustment of Vibration Force

1. The shafts on each end of vibration motor are fixed the eccentric block and adjustable eccentric block.

2. Adjusting the angle between the eccentric block and fixed eccentric block can change the size of the excitation force.

3. When delivery, the engineer will adjust the angle between the adjustable eccentric block and the fixed eccentric block to be the most efficient mode, so that the user can operate well.

Vibrating Motors Parameters

No.	Model	Force(KN)	Power(KW)	Weight(KG)	Installation Size
No.	Model	Force(KN)	Power(KW)	Weight(KG)	A	B
1	MV40/3	0.3	0.05	4	62-74	106
2	MV60/3	0.7	0.07	4.2	62-74	106
3	MV100/3	1	0.09	4.6	62-74	106
4	MV200/3	2	0.15	6.8	62-74	106
5	MV300/3	3	0.25	9.8	90	125
6	MV400/3	4	0.27	10.3	90	125
7	MV500/3	5	0.5	15.8	105	140
8	MV700/3	7	0.59	16.5	105	140
9	MV800/3	8	0.7	20.6	120	170
10	MV1200/3	10	0.95	21.6	120	170
11	MV1300/3	13	1.3	24.5	120	170
12	MV1600/3	16	1.54	51.6	140	190
13	MV1800/3	18	1.85	52	140	190
14	MV2000/3	20	2.1	51.8	140	190
15	MV2200/3	22	2.4	52.8	140	190
16	MV2300/3	23	2.4	53.6	140	190
17	MV3200/3	32	2.76	96.9	155	255
18	MV4000/3	40	2.9	107	155	255
19	MV5000/3	50	4	112	155	255
52	MV60/3M	0.7	0.08	4.5	62-74	106
53	MV100/3M	1	0.1	5.1	62-74	106
54	MV200/3M	2	0.13	6.8	62-74	106
55	MV50DC-24	0.5	0.1	4.5	62-74	106
56	MV200DC-24	2	0.16	6.5	62-74	106
