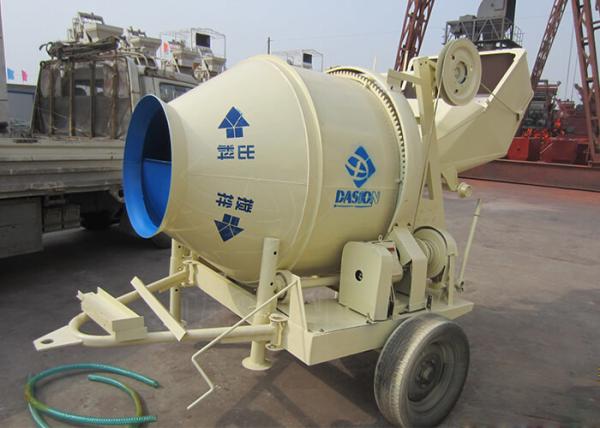

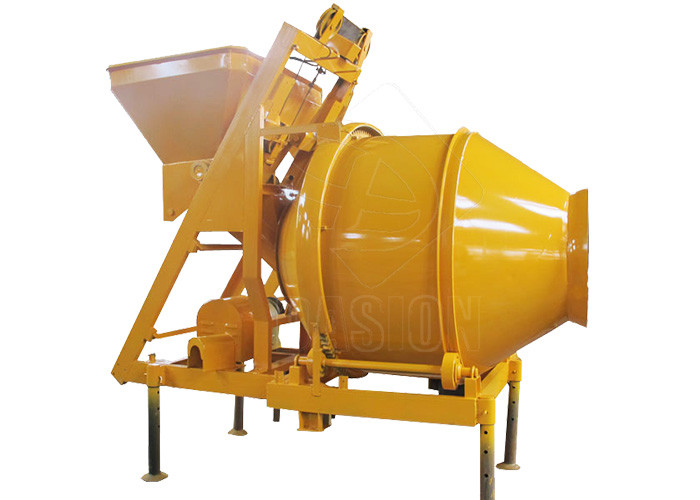

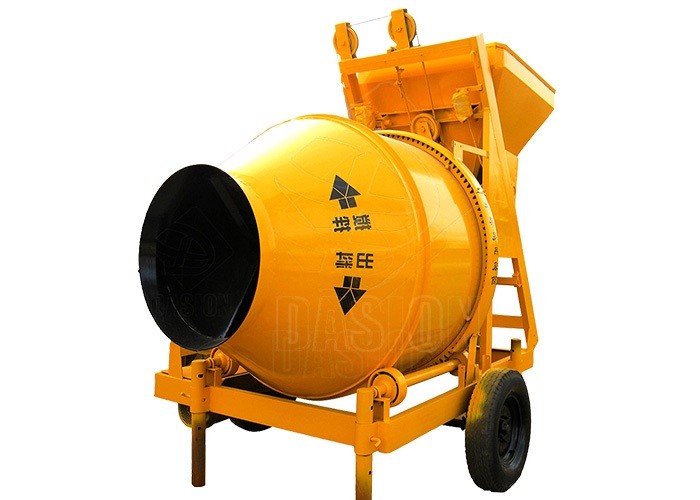

Construction Mobile Electric Concrete Mixer Rotating Climbing Tipping Bucket JZC450

HENAN DASION MACHINERY CO.,LTD
Contact Now

Construction Mobile Electric Concrete Mixer Rotating Climbing Tipping Bucket JZC450

Brand Name : DASION

Model Number : JZC450

Certification : CE&ISO

Place of Origin : Henan Province, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 sets per month

Delivery Time : 10-15 working days

Packaging Details : 1X20GP for 1 set mobile portable concrete mixer

Product name : Construction Equipment rotating climbing tipping bucket Mobile Electrical Concrete Mixer JZC450

Discharging volume : 450L

Charging volume : 720L

Capacity : 16~18m3/h

Drum rotating-speed : 13r/min

Max. aggregate size : 60-80mm

Mixing motor : 11kw

Hoisting Motor : 5.5kw

Water pump motor : 0.75kw

Weight : 1900kg

Contact Now

Construction Equipment rotating climbing tipping bucket Mobile Electrical Concrete Mixer JZC450

Introduction

  • JZC series portable concrete mixer can also be called gear type concrete mixer. Portale concrete mixer is eqipped with wheels, which makes JZC concrete mixer movement easy and convenient.In order to reduce the labor intensity, this type of mixer is light weight and has two wheels below which make for moving conveniently.
  • From the perspective of size, this type of mini concrete mixer is ideal for small to medium projects. For being equipped with double- conic reversing drum transited by gear rim, JZC concrete mixer is also known as gear type concrete mixer,Small Concrete Mixer. The paint cover protects the machine from splashing wet and getting rusty.

Details

It includes automatic ones with twin motor and sub-automatic with single motor. Automatic type's hopper is driven by conical motor,
and hopper up & down, mixing drum'converse & reverse rotary is controlled by electric cabinet , and subautomatic type's hopper is operated by handle. Besides, this model can be driven by electric or diesel engine,to meet the requirements of different construction conditions.

Parameters

Model JZC300 JZC350 JZC450 JZC500 JZM500
Discharging volume 300L(0.3m3) 350L(0.35m3) 450L(0.45m3) 500L(0.5m3) 500L(0.5m3)
Charging volume 480L 560L 720L 800L 800L
Capacity 6-8m3/h 10~14m3/h 16-18m3/h 18-20m3/h 18-20m3/h
Drum rotating-speed 17r/min 14r/min 13r/min 13r/min 13r/min
Max. aggregate size 60mm 60mm 60-80mm 60-80mm 60-80mm
Water feeding precision ≤2% 2% ≤2% ≤2% ≤2%
Mixing motor 4kw 5.5kw 11kw 11kw dual-5.5kw
Hoisting Motor 3kw 4.5kw 5.5kw 5.5kw 5.5kw
Water pump motor 0.55kw 0.55kw 0.75kw 0.75kw 0.75kw
Tyre spec. 6.50-16 6.50-16 7.50-16 7.50-16 7.50-16
Max. dragging speed 20 km/h 20 km/h 20 km/h 0 km/h 20 km/h
Outline Dimension

2260x1990x

2750mm

2766x2140x

3000mm

5226x2200x

3100mm

3116x2050x

4060mm

5800x2200x

3100mm

Weight 1200kg 1650kg 1900kg 1950kg 2800kg

Construction Mobile Electric Concrete Mixer Rotating Climbing Tipping Bucket JZC450Construction Mobile Electric Concrete Mixer Rotating Climbing Tipping Bucket JZC450

Construction Mobile Electric Concrete Mixer Rotating Climbing Tipping Bucket JZC450


Our Service

  • Your inquiry will be replied within 24 hours.
  • Well-trained and experienced staff to answer all your inquiries in fluent English and Russia.
  • We will send our professional engineers to you country and help install the plant , train your worker to operate the plant .
  • If you have any idea or demand, we can provide the customization service.
  • Protection of your market area, ideas of design and all your private information.
  • We will supply the spare parts to insure the quality of our plant.
  • Provide following up after-sales services. We will dispatch our serviceman to solve the problem for you, if you have questions about our plant.
