Forced Mini Mobile Transfer Pump Ready Mix Diesel Concrete Mixer With Pump

HENAN DASION MACHINERY CO.,LTD
Contact Now

Forced Mini Mobile Transfer Pump Ready Mix Diesel Concrete Mixer With Pump

Brand Name : DASION

Model Number : DJBT30

Certification : CE&ISO

Place of Origin : Henan Province, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 10-15 working days

Packaging Details : 1x40HQ for 1set diesel concrete mixer with pump

Product name : New Machine Forced Mini Mobile Transfer Pump Ready Mix Diesel Concrete Mixture With Pump

Capacity : 30m3/h

Pumping pressure : 10Mpa

Max. conveyor height : 140m

Max. distance : 350m

Motor power : 62kw

Max. aggregate size : 20/30mm

Mixer loading capacity : 560L

Mixer unloading capacity : 350L

Weight : 5500kg

Dimension : 4800x2200x2800mm

Color : Required

Contact Now

New Machine Forced Mini Mobile Transfer Pump Ready Mix Diesel Concrete Mixture With Pump

Introduction Of Concrete Mixer Pump:

DJBT series diesel concrete mixer pump combines the functions of concrete mixing and conveying. Be movable with types from one construction site to another. Pump not only large size aggregate concrete, but also fine stone concrete or mortar. Be suitable for the small and middle-scale road and house projects. It can also work in the power shortage areas by equipped with generator set.

The concrete mixer pump apply to small or medium construction project, especially suitable for small-scale rural & civil construction, mined, road and rail tunnels, water resources and hydropower engineering etc. Mixing, screening and pumping triple, to simplify the process, improve the efficiency of construction can be continuous construction jobs.

Advantages Of Concrete Mixer Pump:

  • Main oil pump. Adopt domestic famous brand or Rexroth, Kawasaki series.
  • Lubrication system. Adopt automatic lubrication system, high oil pressure with stable lubrication effect.
  • Power system. Adopt domestic and world famous motor and diesel engine.
  • Control system. Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more flexible and convenient.
  • Electric parts. Main electric elements are from Schneider or ABB, highly improved the reliability.
  • Seal parts. Big oil cylinder’s seal components adopt American Parker.
  • Hydraulic rubber hose joints. Adopt American Eaton, insures the safety and no leakage of hydraulic system.
  • S valve. Wear-resistant cast iron materials, enjoys the advantages of anti-high pressure and anti-wearing.
  • Glass plates and cut loops. Made of anti-wearing horniness alloy, has long service life.
  • Concrete piston. Precisely processed by imported material, enjoys the features of hydrolytic resistant, wear resistant and high temperature resistant.
  • Equipped with double row tires, which can bear heavy weight, stand steady, and be towed on the rough road.
  • Specialized double doors for the electrical box, which is with dust proof, water proof and good sealed performance.

Product Parameters:

Items Units JBT30 JBT40 DJBT30 DJBT40
Transfer Pump Max. theoretical output m3/h 30 40 30 40
Max. pumping pressure MPa 9 10 10 10
Max. conveyor height m 140 160 140 160
Max. distance m 350 500 350 500
Power type Motor Motor Diesel Diesel
Motor power kw 37 45 62 82
Distribution cylinder The S tube placed valve
Main oil pump capacity ml/min 71 112 71 112
Main oil cylinder diameter mm 80x845 100x1000 80x845 100x1000
Hopper capacity L 550 550 550 550
Max. aggregate diameter mm 20/30 30/40 20/30 30/40
Concrete Mixer Loading capacity L 560 720 560 720
Unloading capacity L 350 450 350 450
Mixing motor kw 5.5x2 5.5x2 / /
Hoisting motor kw 4.5 4.5 / /
Total Dimension mm 4270x2350x2980 4800x2200x280 4800x2200x2800 6000x2200x2800
Weight kg 3300 5000 5500 6000

Product Details Show:

Forced Mini Mobile Transfer Pump Ready Mix Diesel Concrete Mixer With Pump

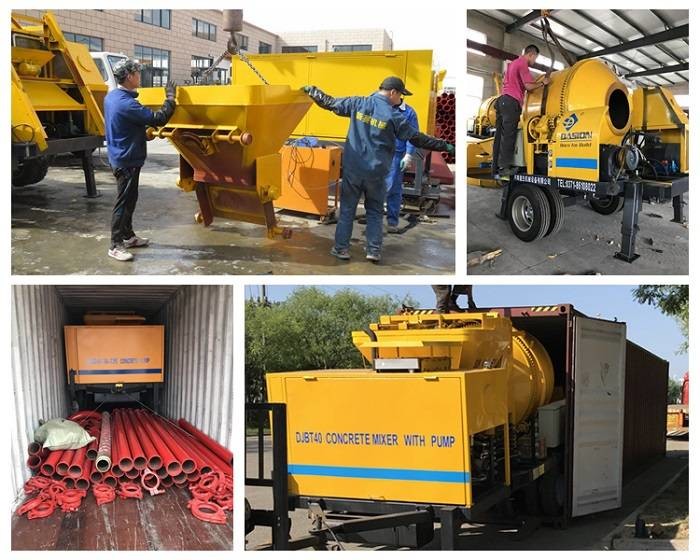

Delivery

Forced Mini Mobile Transfer Pump Ready Mix Diesel Concrete Mixer With Pump


Product Tags:

cement mixer and pump



concrete pump with mixer


China Forced Mini Mobile Transfer Pump Ready Mix Diesel Concrete Mixer With Pump wholesale

Forced Mini Mobile Transfer Pump Ready Mix Diesel Concrete Mixer With Pump Images
