Compulsory Ready Mix Concrete Mixer Machine Large Capacity Twin Shaft Type

Large capacity 750 liter twin shaft compulsory ready mix concrete mixer machine price

Brief Introduction of Twin-shaft Concrete Mixer:

JS/YJS twin-shaft concrete mixing machine can be used independently, also be applicable to the Commercial Ready Mix Concrete Plant, working with PLD series of Aggregate Batching Machine. The cement mixer is normally used in bigger construction projects, such as high building, railway bridge, river construction, airport project, etc. Their productivity are much bigger, and mixing effect is much better.This kind of Dual-axle Concrete Mixers are well know as their Italy-tech design.

Working Principle of Twin-shaft Concrete Mixer:

• Concrete mixer is one kind of construction machine which can mix cement, aggregate, water into concrete mixture material.
• Concrete mixer is made of mixing drum, loading material device, unloading material device, water supply system, power supply device, transmission device, mechanical frame and supporting device.
• Concrete mixer makes the various of material mixing equally in macroscopically and microcosmicly, break the reunion phenomenon of cement powder, promote dispersion of behavior.
• Concrete mixer breaks the film parcel layer of the initial water compound on surface of cement powder.
• Concrete mixer promotes the crash and friction among the different material, reduce the impact of dust film.
• Concrete mixer increases the sporting times of various material units, and the crossover frequency of movement locus, speed up the homogeneity.

Twin-shaft Concrete Mixer Technical Parameter:

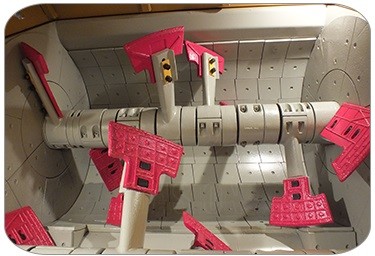

	Mixing blades The mixing system adopt the design of multi mixing blades, free of dead corner, which enables to have the perfect mixing efficiency in a short time.

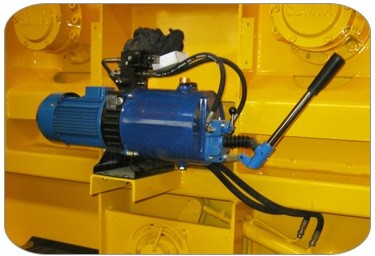

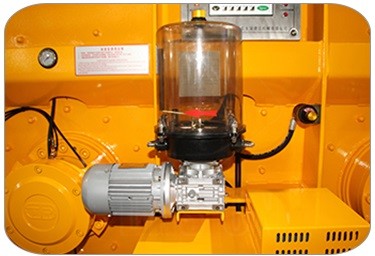

	Electric lubricating pump National patent host monitoring system can monitor hydraulic pump ,retarder oil temperature, oil level. Users could discover and deal with faults in time, which could improve the service life.

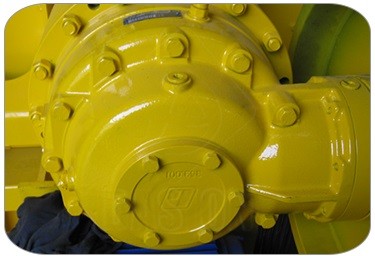

	Gear box(Reducer) Adopt Italy gear box, long service life,lower noise, no oil leakage.

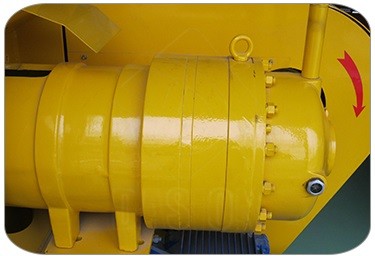

	Axle-end seal Shaft end seal with unique pressure differential multiple sealing technique, where there was a substantial increase of shaft service life.
	Discharging system Advanced hydraulic discharging door . In condition of sudden power outage ,the discharging door can be opened by hand, prevent concrete from lumping in the mixer.

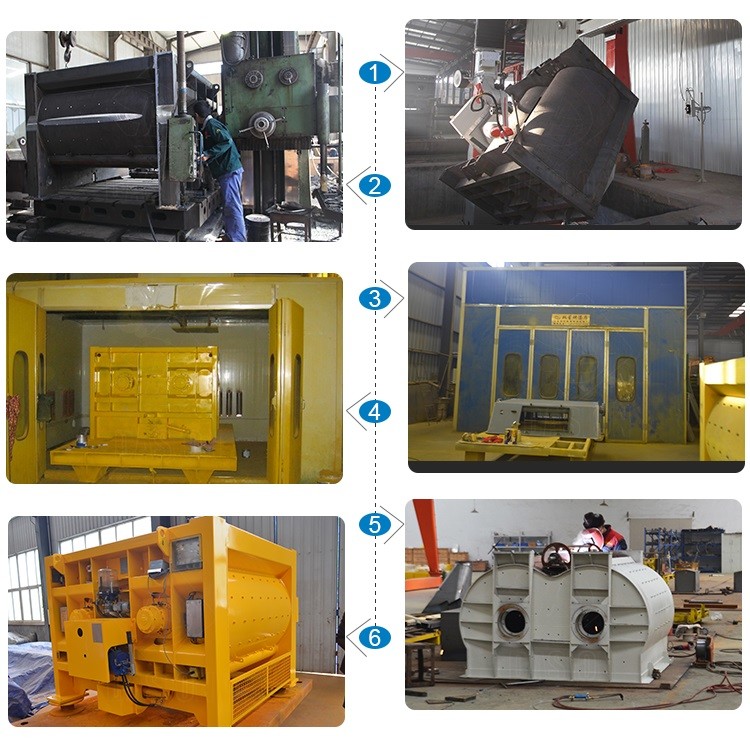

Twin-shaft Concrete Mixer Production Process:

industrial concrete mixer

concrete mixing equipment

Compulsory Ready Mix Concrete Mixer Machine Large Capacity Twin Shaft Type Images
